#APS105 Slides Lecture

Array Representation in Memory in C

Arrays are stored at a random, unused address by C.

• The array type is just a pointer to the first index of the array.
• Each element in the array is stored in an adjacent cell—this is known as contiguous.
• Thus, the 1st index is stored at an address that is 1 multiple of the size of the array type greater than the 0th index.
  • E.g., for an integer array, each element would be stored at the $initialaddress+4n$, $n\in Z^{+}$.
• And since arrays are just a pointer, we can use pointer arithmetic to get the values at different indices of an array.
  • Note that we can only add or subtract pointers; multiplying or dividing is not useful.

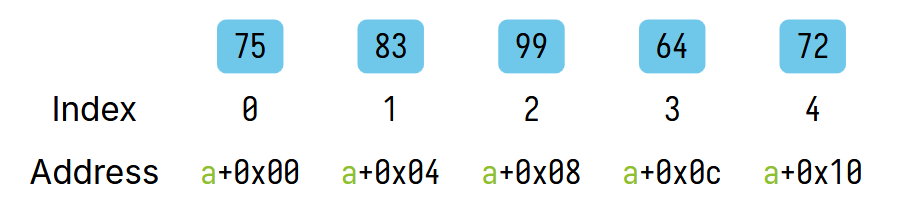

How an int array is stored in memory. The addresses are adjacent, spaced by 4 cells.

Arrays cannot be treated as pass by values in functions

Since an array is essentially a pointer to where the array is stored, arrays cannot be treated as pass by values; instead, a copy of the address of the array is fed into the function.

• When this happens, the type int [] gets converted to int *, commonly known as array decay.
  • As a result, no matter the number of elements in the array fed into the function, calling sizeof(array) will always result in a size of 8 (on a 64-bit machine) since that is the byte size of the address of the first index of the array.
  • This is because sizeof is performed on the type pointed to, so it by default determines the size of the value with type int * instead of int [].
• Thus, any changes to the array within the function affect the function globally.

Obtaining the index of an element in an array

Since arrays are contiguous (each element is stored in adjacent cells), if we know the address of the first element, we can also find the address of an $i^{th}$ element.

• It follows that the address should be startingAddress + i * sizeof(int) for an int array.
• However, C automatically computes sizeof() for pointer arithmetic.
  • This ensures that you're not gonna get, for example, the $2^{nd}$ cell of an int value, which would not be useful to you at all.
  • Thus, the address of an $i^{th}$ element is simply startingAddress + i.

Initializing a Pointer to a Safe Address

If you don't know the value of an int yet, you can:

• set the value equal to 0, or:
• set the pointer to NULL by using int *p = NULL.
  Otherwise, the value at the address that the pointer points to will be "random".
